Infrared Transmission System
Product introduction

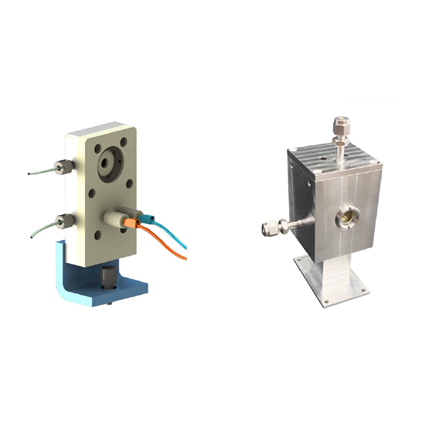

Infrared transmission reaction system is mainly used to study the infrared spectrum characteristics of samples at different temperatures and gas environments. The product is mainly composed of reaction tank, gas mixing control system and temperature control system. The main body of the reaction tank is made of 316L stainless steel and equipped with infrared windows. The gas mixing control system accurately controls the gas flow of each channel through the mass flowmeter and realizes mixing. The temperature control system controls the temperature of the gas channel, the gas mixing tank and the reaction tank through various sensors.
Product parameters and characteristics
●HD 800*480 resolution true color touch screen flow control, easy to operate and use;
●The product has three-stage heating and four-way temperature display, which can understand the temperature of each position in real time, and the temperature control accuracy is ± 0.1 °C;
●2~4 gas distribution channels are provided as standard, and the number of gas channels can be customized;
●The maximum temperature tolerance of the reaction tank is 300 °C;
●The main body of the reaction tank is designed with double jacket to ensure the thermal insulation and safety of the experiment.
Description | Parameter |
Infrared spectrometer | Main indicators: spectral resolution: better than 0.4cm-1; Signal to noise ratio: better than 50000:1 (1 minute test, 4cm-1 resolution, peak to peak); Better than 15000:1 (5-second test, 4cm-1 resolution, peak to peak); Fast scanning:up to 100 sheets/s, more details can be obtained in the in-situ reaction and rapid kinetics; Detectors: DTGS and MCT detectors. |
Infrared diffuse reflection device | Main indicators: 500 °C, 3Mpa; External light source can be introduced; 316L stainless steel material, infrared window, ZnSe window, light window quartz window, with air inlet and outlet, can be evacuated (different temperature functions and ionomers can be customized) |
Infrared electrochemical ATR device | Main indicators: liquid phase three electrode system; Can pass through atmosphere and introduce light source; Can be heated (material can be customized) |
Infrared transmission device | Main indicators: 300°C, normal pressure, vacuum extractable, 316L stainless steel;The sample tablet thickness is less than 1mm (the temperature and pressure functions can be customized) |
Gas mixing device | Main indicators: three-way gas mass flowmeter, touch screen control, gas mixing tank, and the system can be heated; Including control software and supporting valves and pipelines (atmospheric pressure ~3MPa, customizable) |
Molecular pump unit | Main indicators: nitrogen pumping speed: 67L/S; Extreme vacuum: <1·10-7bar; Pumping speed of the front stage pump at 50Hz: 0.75L/S; Weight: 14.2kg |
Others | Electrochemical workstation, gas chromatography, rotating disk electrode, etc. can be equipped separately |
