In-situ microscopic observation pool series
Product parameters and characteristics

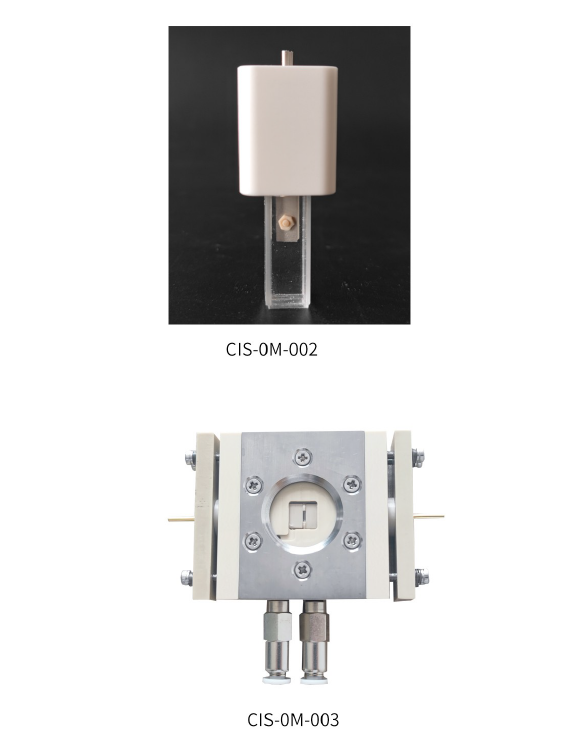

●Material:quartz.
●Volume:About 5ml.
●Electrode material:pure titanium.
●Electrode spacing:3mm.
●Shell:PTFE，Sealed by sealing ring.
●Suitable for symmetrical zinc batteries.
Product parameters and characteristics

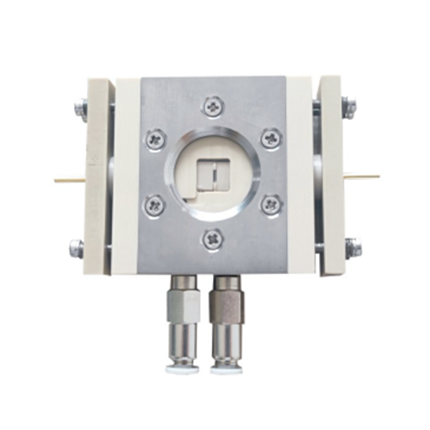

●Material:peek
●Equipped with replaceable and stable glassy carbon or metal electrodes
●Window material:quartz
●With gas pushing function, online liquid filling
●Good sealing of the device
●Net aperture Φ24mm
●The minimum working distance is 1mm
●The sample space size is 10 * 10mm rectangle, and the thickness application range is 0.6-2mm.
●Applicable to all kinds of secondary batteries
Special bracket for dendrite observation
Special loading platform suitable for dendrite observation and several special fixtures with different functions are equipped as standard, which can be applied to various electrolytic cells of different specifications.
Product introduction
The reaction cell can be used to observe the dendrite growth / dissolution process of the metal negative electrode in the charge and discharge process in an all-round way, to meet the observation needs of different metal negative electrodes (lithium, sodium, zinc, etc.), with simple design, good sealing, convenient operation and repeatability.
Product parameter
●Tank material: PEEK
●Window: quartz
●Focal length：≤3mm
●Tightness: Fully sealed
Dendrite observation microscope
Optical system | Dendrite observation optical system | · |
Observation lens barrel | Hinge type three eye observation lens is simple, can be connected to the imaging system, 30°tilt, pupil distance is 45~79mm, and eye point is adjustable | · |
Eyepiece | Large field eyepieceWF10X (field of view Φ25mm), high eye point, adjustable diopter | · |
Objective lense | Special objective lens for dendrite observation 5X | · |
Special objective lens for dendrite observation 10X | · | |
Special objective lens for dendrite observation 20X | · | |
Special objective lens for dendrite observation 50X | ° | |
Special objective lens for dendrite observation 100X | ° | |
Objective lens converter | Inward six hole objective lens converter | · |
Lighting system | Kohler lighting system,12V/100W halogen lamp,including polarizer,analyzer and color correction filter | · |
Focus system | Coarse fine adjustment coaxial,coarse adjustment with locking device(to prevent lens collision),can be set with tightness,fine adjustment grid value 1μm | · |
Stage | Special stage for dendrite observation, size 210*140mm, stroke 76*51mm, including special clamp for battery | · |
Imaging interface | Type C interface 1X | · |
Imaging system | U806,SONY COMS,45fps（3072*2048） | ° |
U820,SONY COMS,15fps(5472*3648) | · | |
software | Yuescope 2.1 | · |
Note:·Standard equip, °Optional configuration
Depth of field fusion
Multiple images with different focal lengths are collected by fine-tuning the focal length, and a single image is synthesized for output. It is applicable to samples that need a certain depth of field and are poorly made.
Time-lapse photography
Full-resolution video recording will occupy a huge amount of computer memory, while delayed photography can set the total number of frames, interval time and delay time at will, which not only ensures the resolution of the image, but also releases the computer memory.
