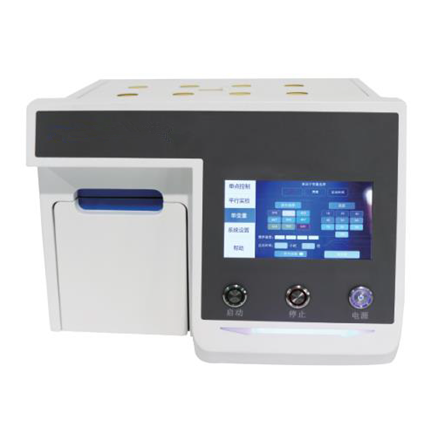

Room-Temperature Type High-Flux Photocatalytic Reactor
Design features
Support 1~8 groups of parallel experiments
Multi-wavelength package, and no change of light source is needed in case of wavelength switching
Bottom illumination, suspended magnetic stirring and optical-level light-receiving plane are adopted, improving the utilization rate of incident light
The microcomputer chip integrated control system is utilized, and the light source wavelength, power and reaction time of each station are independently controlled
It can realize a starting speed of 1,000 r/min, with orderly suspended magnetic stirring
Technical parameters
| Item/Model | SCI-PCRS-8-X |
| Electric power | 4 w/hole position |
| Maximum optical power | 1,000 mW, depending on the wavelength |
| Adjustable spectral range | 360-670 nm |
| Reaction station | Eight stations, with fixed holders, suitable for multi-specification reaction tube |
| Reaction tube | Our customized quartz tube, standard 50 mL*8, and customization of other specifications are supported (＜50 mL) |
| Type of reaction tube | Standard test tubes (Schlenk tubes, etc.), pressure tubes, etc |
| Constant temperature system | Independent air cooling, realizing the heat dissipation for the light source and maintaining a room temperature |
| Magnetic stirring driving mode | Independent motor driving and rare earth permanent magnet rotary stirring |
| Stirring speed | 0-1,000 r/min |
| Optional wavelength | 1. Nine kinds of wavelengths (370 mm, 390 nm, 427 nm, 440 nm, 456 nm, 467 nm, 520 nm, 560 nm and 620 nm) are packed in a LED chip, and the wavelength is switched with the software 2. In addition, other wavelengths, from ultraviolet wavelength (255
nm) to near-infrared wavelength (1,000 nm), can be customized |
