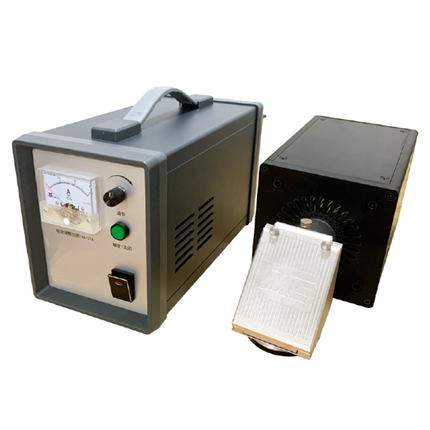

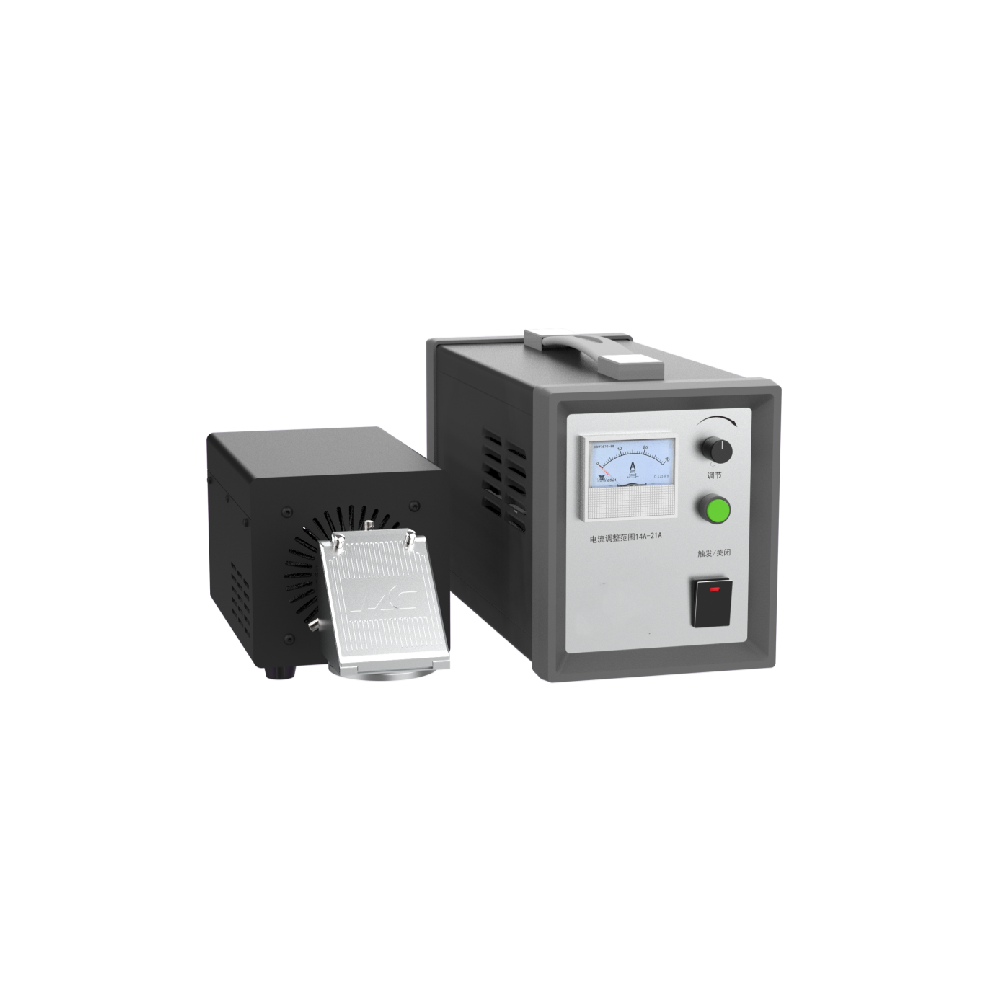

ACG-PF300 Xenon Lamp Light Source System

ACG-PF300 Xenon Lamp Light Source System

Xenon light source is widely used in research fields such as photocatalysis, industrial catalysis, photolysis of aquatic hydrogen, photochemical catalysis, photochemical synthesis, photodegradation of pollutants, water pollution treatment, biological illumination, optical detection, various simulated solar visible light acceleration tests, and ultraviolet band acceleration tests.

The equipment has ultra-high light intensity, with the strongest reaching 30 suns and the lowest reaching 1 sun, suitable for rapid photocatalytic experiments; High and low voltage separation design to avoid electromagnetic interference to external equipment caused by high voltage triggering.

Product Features

1. Body material: High density non-metallic material body, insulation performance level B, safe and reliable;

2. Trigger method: 30KV high voltage trigger, the trigger device is integrated into the lamp head, easy to trigger without obstacles;

3. Spot uniformity: Choose uniform light components to meet the B-level standard of solar simulators, with an unevenness of less than 5%;

4. Power stability: The power output is stable with a power error of less than 3%;

5. Ultra high light intensity: With a brand new optical path design, the maximum light intensity can reach over 30 suns;

6. Port coupling: Can be coupled with other auxiliary devices such as fiber optics, electronic shutters, uniform light lenses, and filters.

Technical Parameters
