Intrinsically Safe Spark Test System
The system meets the intrinsic safety and explosion-proof standards of IEC 60079-11:2011. It adopts advanced configuration monitoring and process control technologies to perform fully automated testing of the intrinsic safety performance of intrinsically safe circuits in explosion-proof electrical equipment for mining and industrial applications. Each test process features real-time gas mixing and displays gas concentration dynamically.
System Components

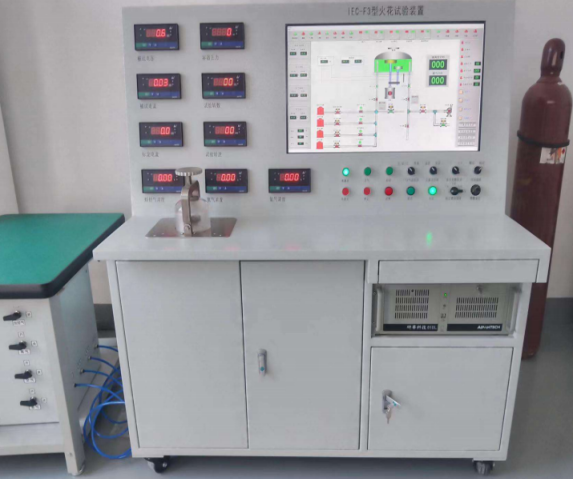

The control panel consists of digital displays, an LCD screen, buttons, selector switches, and indicator lights. Internally, the system integrates an industrial computer, PLC, flow controllers, voltage/current detectors, calibration selectors, AC servo motors and controllers, vacuum pumps, precision inductance boxes, solenoid valves, precision DC power supplies, switching power supplies, and low-voltage electrical components. No external gas mixing unit is required; on-site auxiliary equipment includes gas tanks (methane, propane, ethylene, hydrogen, oxygen, and air).
Technical Parameter
Explosion chamber volume | 250 cm³ |
Test voltage | 0–300 V |
Test current | 0–10 A |
Motor speed | 120 rpm (adjustable) |
Type Testing | Calibration: 400 revolutions (DC circuits, polarity reversed at 200 revolutions); Testing: 440 revolutions (DC circuits, polarity reversed at 200 revolutions); 1000 revolutions (AC circuits) |
Tungsten wire count | 4 |
Internal resistance | ≤150 mΩ (1A DC current); ≤100 mΩ (3A DC current) |
Self-inductance | ≤3 μH (1A DC current); ≤1 μH (3A DC current) |
Self-capacitance | ≤30 pF (open circuit) |
Gas mixing time | <120 seconds |
Gas mixing accuracy | ±0.5% |
Repeatability | ±0.2% FS |
Linearity error | ±0.2% FS |
Operating pressure differential | 0.1–0.3 MPa |
Maximum pressure resistance | 1 MPa |
