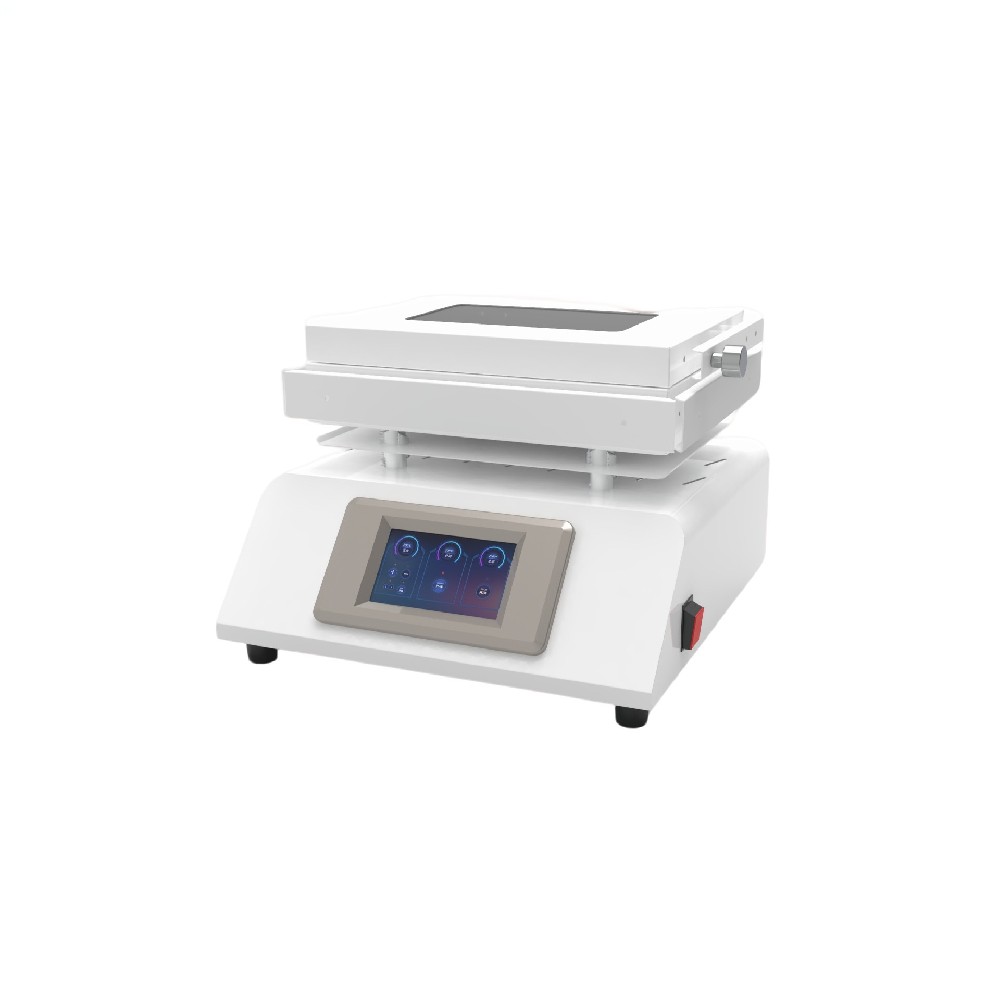

Hot Plate ACG-BM280
The high-precision programmable hot plate is a high-performance laboratory equipment designed for precise temperature control, accurate timing and proximity heating, enabling intelligent programmed baking control of photoresist.
Features
1. Copper substrate heating panel features faster heat conduction and superior temperature uniformity.
2. Equipped with a 5-inch color touch screen for intelligent program control.
3. Real-time display of program status and temperature.
4. Automatic stop upon experiment completion, unattended operation available.
5. Temperature calibratable to ensure high temperature accuracy.
6. Multiple heating modes optional, supporting 18-segment programmed temperature rise.
7. Over-temperature automatic alarm function.
Technical Parameters
| Panel Material | Copper Base Material |
| Heating Area | 280×200 mm |
| Effective Constant Temperature Area | 240×160 mm |
| Temperature Control Range | Ambient Temperature ~ 500℃ |
| Temperature Control Accuracy | ±1℃ (or ±1% of reading, as marked) |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±1℃ (or ±1% of reading, as marked) |
| Time Setting | 1–999 min |
| Temperature Control Mode | PID + SSR (Solid State Relay) |
| Voltage | 220V / 50Hz |
| Power | 2000 W |
| Product Dimensions | 370*370*240 mm |
