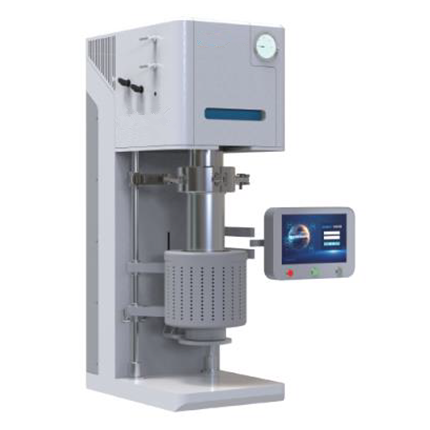

MSA Series Desktop Automatic Reactor
Product features
⚫ Use an independently developed touch screen type man-machine interaction system, clearly showing the parameters and operating status of the reactor. Adopt the graphical UI interface, which is concise and user-friendly
⚫ Support the paperless recording, real-time record of the temperature and pressure data and historical curve, and data download with a USB flash disk, which is convenient for the study of reaction kinetics
⚫ Provide the functions of over-temperature and over-pressure sound-light alarm, automatic heating cut-off, and autonomous alarm limit so as to ensure the safety of the experiments. Support the independent setting of temperature/pressure limit, over-limit sound-light alarm and self-starting of protection procedures, providing a safe operation
⚫ Use the BLDC motor for stirring, with high torque and accurate rotation speed control
⚫ Adopt integrated design, showing beautiful appearance and compact structure and saving your experiment table space to the maximum extent
⚫ The outline dimension is about 450 mm*520 mm*1,000 mm
Model list
| Model List of Reactor Series | |||
| Type | Parameter | Model code | Remarks |
| Design volume( mL) | 25 | 25 | MSI series has a maximum volume of 500 mL |
| 50 | 50 | ||
| 100 | 100 | ||
| 300 | 300 | ||
| 500 | 500 | MSA series with a volume over 500 mL (exclusive) bear a maximum pressure of 207 bar | |
| 1000 | 1000 | ||
| 2000 | 2000 | ||
| Maximum operating pressure( bar/psi) | 103/1500 | P3 | |
| 138/2000 | P4 | ||
| 207/3000 | P5 | ||
| 255/3700 | P6 | ||
| 310/4500 | P7 | ||
| 345/5000 | P8 | ||
| Standard temperature(℃) | 100 | T1 | |
| 200 | T2 | ||
| 300 | T3 | ||
| 350 | T4 | ||
| Material | Stainless steel 316 L | SS1 | Consult our engineering and technical team if other materials are needed |
| Stainless steel 304 | SS2 | ||
| Stainless steel 904 L | SS3 | ||
| Stainless steel 310S/2520 | SS4 | ||
| Hastelloy C-276 | HC1 | ||
| Hastelloy B-2 | HB2 | ||
| Titanium alloy TA2 | TA2 | ||
| Zirconium 702 | ZR1 | ||
| Monel 400 | MN1 | ||
| Inconel 600 | IN1 | ||
| Optional interfaces and configurations | Sampling valve | S | The standard interface will be provided if no option is selected One or more options can be selected The reactor with a volume of 25, 50 and 100 mL has no internal cooling coil The reactor below 500 mL has no solid feeding port |
| Equilibrium reflux sampling | BS | ||
| Bottom discharge valve | DV | ||
| Liquid feed tank | LF | ||
| Solid feed tank | SF | ||
| Pressure sensor | PI | ||
| Digital pressure gauge | DP | ||
| Relief valve | SV | ||
| Internal cooling coil | IC | ||
| Temperature sensor | T | ||
| Others | ET | ||
| High-speed cooling function of the reactor vessel | Optional electric lift module | Scope of application: MSG/MSI/NSG/NSI series (only applies to overhead stirring for MS series) | |
| |||
