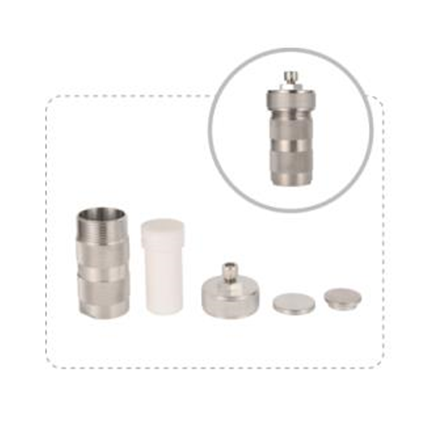

HTS Stepped Hydrothermal Reactor
It adopts an innovative stepped positioning structure of the liner, effectively reducing the cold deformation of the liner caused by rapid cooling from the high temperature, avoiding volume reduction of the liner, and prolonging its service life.
Design volume: 25/50/100/200 mL
Maximum operating pressure: 30 bar
Maximum allowable operating temperature: 260 ℃ (liner made of imported materials)
Sealing form: groove face combined with self-sealing and stepped positioning
Material of liner: PTFE
