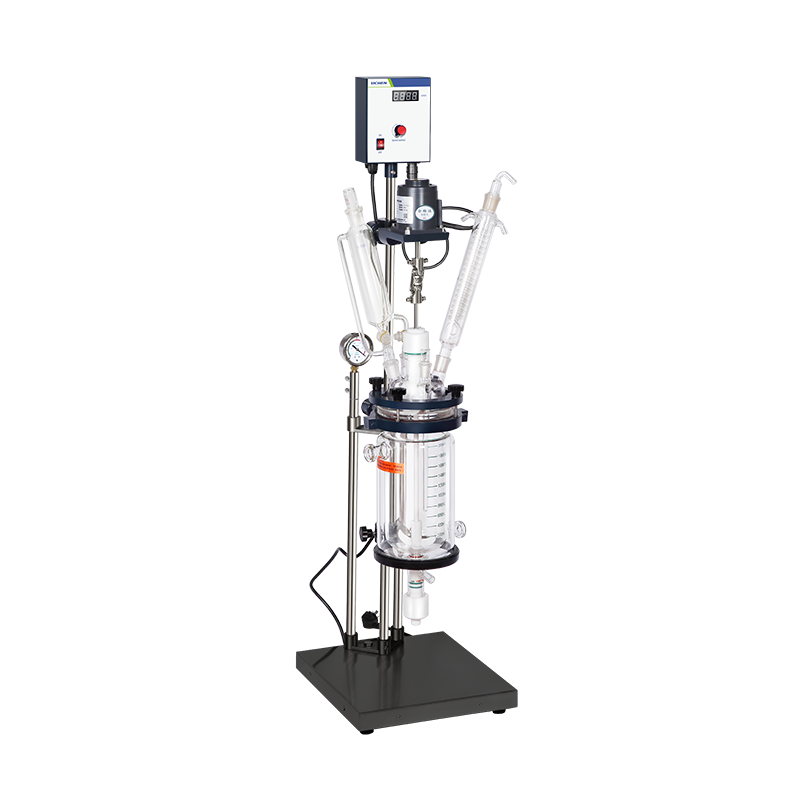

 ACG-S212-1L Glass Jacket Reactor

This machine is equipped with an electric constant speed mixing system, condensing and dripping systems, and a circulating equipment for external heating or cooling is required for the interlayer of the reactor body. While stirring the materials, inject circulating hot solution or coolant through the interlayer to heat or cool the materials in the kettle at a constant temperature. When the material undergoes heating reaction, the evaporation efficiency can be improved under vacuum conditions (vacuum device needs to be connected). The solvent vapor is cooled into liquid through the glass condensation coil (cooling device needs to be connected), which can reflux into the kettle or be recovered through the valve at the lower part of the reflux elbow. After the reaction is completed, the material can be discharged from the side discharge port at the bottom of the pot.

This series of products requires a matching vacuum device, high-temperature or low-temperature circulation device, etc. to form a system device.

Performance Advantages

A.All parts in contact with the material are made of high borosilicate glass (coefficient of expansion 3.3) and polytetrafluoroethylene material, which have stable performance and are not prone to chemical reactions with the material, making them convenient and safe to use.

B.The bottom plate body is made of aluminum alloy and stainless steel material, which is efficient, stable, beautiful, and durable.

C.Glass+PTFE discharge valve, no liquid accumulation side discharge, very fast solution recovery.It can set two different speed of grinding time, aiming at the special requirements of different samples.

D.Electronic stepless speed regulation, with digital display of rotational speed through fine tuning, stable performance and convenient use.

E.The mixing system adopts dual bearings and dual skeleton oil seals, which are resistant to high temperature, wear-resistant, and have good sealing effects.

F.The vacuum pressure gauge displays real-time vacuum and the pointer displays.

G.. Crescent type stirring blade, 304 stainless steel+PTFE stirring blade; The material of the mixing rod is 304 stainless steel, wrapped in polytetrafluoroethylene pipes, with high strength and strong corrosion resistance.

H.Fuses provide safety protection to ensure safe operation of the circuit.
