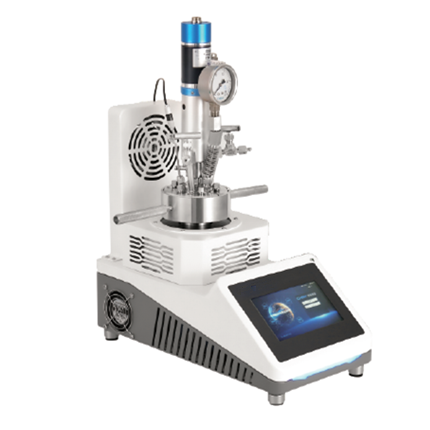

MSP Remote Intelligent Micro Mechanical Stirring Reactor
This product integrates the reactor, heating furnace and intelligent control system. It adopts an independently developed temperature control strategy, ensuring a high heating rate with no excessive temperature rise. In addition, it can realize remote control through the mobile phone APP under unattended operation.
Address users' difficulties
⚫ Heating rate increase
⚫ Real-time update of historical data curve and data query
⚫ Steel sleeve provides heat protection to avoid empty furnace heating
⚫ The remote control system of the Internet of Things solves the inconvenience of long-distance or occasional operations
Product features
⚫ Reactor
The quick-opening mechanical stirring reactor adopts dual calipers, a tenon-groove sealing structure, an enhanced PTFE sealing element at a temperature below 300 ℃, and flexible graphite sealing element at a temperature above 300 ℃. The integrated main structure with non-welding structure is used, which is safe and reliable. All the core accessories are imported products of well-known brands
· The mechanical stirring component adopts the high-torque magnetic coupling stirring driver independently developed by Kemi. The full static sealing structure is adopted, free from leakage caused by the kinematical sealing. The stirring driver supports long-term operation under the pressure of 345 bar (5,000 psi)
⚫ Intelligent control system
Comprehensive safety protection: over-temperature and over-pressure alarm prompts and power-off protection during the reaction; power-off protection of the heating furnace under over-temperature, avoiding empty furnace heating
Portable: ① One-button start of the system: input the target temperature, heat preservation time, and motor rotation speed to start the system and quickly heat up by pressing the button; ② Manual multi-stage temperature rise: based on the traditional multi-stage temperature control procedure, it meets the customers' multi-stage temperature control requirements; ③ Other key functions: the temperature and pressure historical data and curve can be viewed in real-time; the historical data can be recorded entirely and exported through the USB interface with a USB flash disk
Accurate: The self-developed temperature control strategy with high-temperature control accuracy and faster heating rate is used
Stability and reliability design: The overall control system uses hardware of internationally well-known brands, such as Siemens PLC and Schneider relay
⚫ Remote control of the Internet of Things (optional)
Remote operation through mobile phone APP or remote computer
Convenient data display and analysis window, realizing real-time data and curve viewing, historical data and curve querying.
Remote equipment settings and one-button start-stop control are allowed. Input the target temperature, heating rate, heat preservation time and motor rotation speed remotely, you can start or stop the system by pressing the button. Besides, the remote power-off function is offered to protect the equipment remotely
Technical parameters
Design volume | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
Maximum temperature | Standard 300 ℃ |
Heating mode | Embedded stainless steel heating ring |
Heating power | 1 kW |
Heating rate | 9.1-11 ℃/min (no liner) |
Stirring speed | 400~1000 rpm (stepless speed regulation) |
Design pressure | Standard 207 bar (25 mL, 50 mL, 100 mL) Standard 100 bar (300 mL, 500 mL, 1000 mL) |
Material of reactor | 316 L stainless steel, Hastelloy C276, etc. (customizable) |
Outline dimension | 240*270*450 mm |
Intelligent control system | The three-in-one operating system of mobile phone APP + remote computer + local touch screen Quick parameter setting and one-button start Free switch of manual input of multi-stage temperatures and one-button start Data viewing and curve displaying Historical data record and export in sheet |
Personalized options | Various alloy materials, stirring forms, sampling and cooling, etc. optional configurations |
