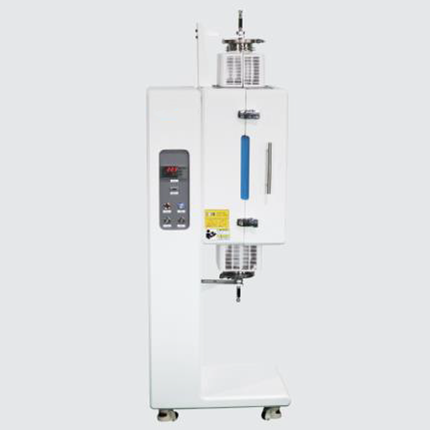

Experimental Single-Zone Vertical Tube Furnace
Technical parameters
| Item/Model | TFV-1200-50-I-440 |
| Product size | Tube OD: 50 mm; ID: 44 mm Middle air distributor bore diameter: 0.1 mm Outline dimension: 460*400*890 mm |
| Adaptive power | AC220 V50/60 Hz |
| Heating element | Beijing SHOUGANG HRE |
| Operating temperature | Maximum temperature: 1,200 ℃ (Inert gas must be loaded to prevent tube deformation) Rated temperature: 1,100 ℃; Recommended heating rate: ≤10 ℃/min Maximum heating rate: 20 ℃/min |
| Heating zone | Heating zone length: 450 mm Constant temperature zone length: 200 mm (± 3 ℃) |
| Control mode | PID control and self-tuning regulation Intelligent control through 30 programmable segments Supporting alarm for over-temperature and for open circuit of thermocouple Temperature control precision: ±1 ℃ K-type thermocouple PC control software can be installed for real-time data collection (to be purchased separately) |
| Sealing system | Quick-open flanges are set at both ends of the tube |
| Model List of TFV Series Vertical Tube Furnaces | |||
| Type | Parameter | Model code | Remarks |
| Operating temperature (℃) | 1200 | 1200 | |
| 1400 | 1400 | Maximum applicable tube parameter: 100 mm | |
| 1500 | 1500 | Maximum applicable tube parameter: 80 mm | |
| 1700 | 1700 | Maximum applicable tube parameter: 80 mm | |
| Tube parameter (mm) | 25 | 25 | Customizable |
| 30 | 30 | ||
| φ50 | 50 | ||
| φ60 | 60 | ||
| φ80 | 80 | ||
| Customizable | —— | ||
| Number of heating zones | I | I | |
| II | II | ||
| III | III | ||
| Customizable | —— | ||
| 150 | 150 | Determine the product model together with the temperature parameter | |
| Heating zone length (mm) | 200 | 200 | |
| 290 | 290 | ||
| 440 | 440 | ||
| Other | —— | ||
