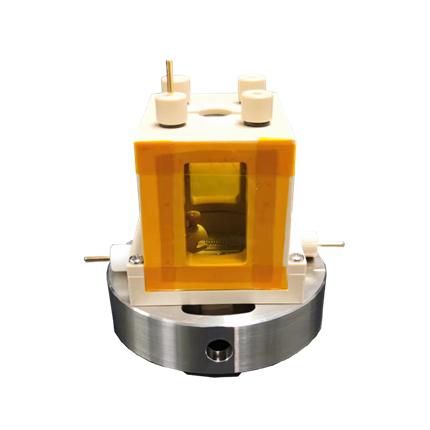

Photocatalytic XRD Cell
Product introduction
The reaction cell is applied to the in-situ XRD characterization of the photocatalysis reaction. The top of the cell body is provided with quartz light windows, and the left and right sides of the cell body are provided with polyimide positive windows. The reference electrode, counter electrode and working electrode are equipped. The in-situ XRD test can be realized under different wavelengths of light and different electrical conditions to obtain the structural changes of materials; The reaction tank can realize the ventilation operation in the solution in the reaction tank. The product can be equipped with a temperature control system to accurately control the test temperature of the reaction tank.
Product parameters and characteristics
Material of tank body: PEEK;
Light window: quartz;
X-ray window: polyimide film;
2θ: 5~120°;
Sealing ring: PTFE / FFKM, etc;
Temperature test range: normal temperature ~ 300℃;
Working electrode: glassy carbon, platinum plate electrode clamp.
