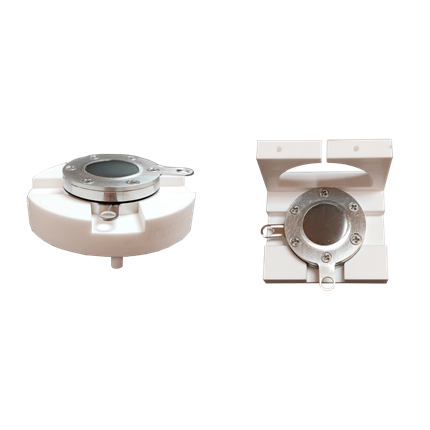

Lithium Battery XRD Test Cell
Product introduction
The XRD test cell of lithium battery is mainly used for online collection of XRD spectrum data of electrode materials in the lithium ion reaction system. It can conduct real-time and online observation on the phase change of electrode materials in the chemical reaction process of lithium battery.
Product parameters and characteristics
●Material of tank body: 316L stainless steel;
●Temperature: normal temperature;
●Pressure: normal pressure；
●Sample type: all samples that can be used as lithium battery materials, positive and negative electrode diameter Φ<16 mm；
●Diaphragm diameter: Φ≤ 20 mm;
●Detection angle: 10°< 2θ <120°.
