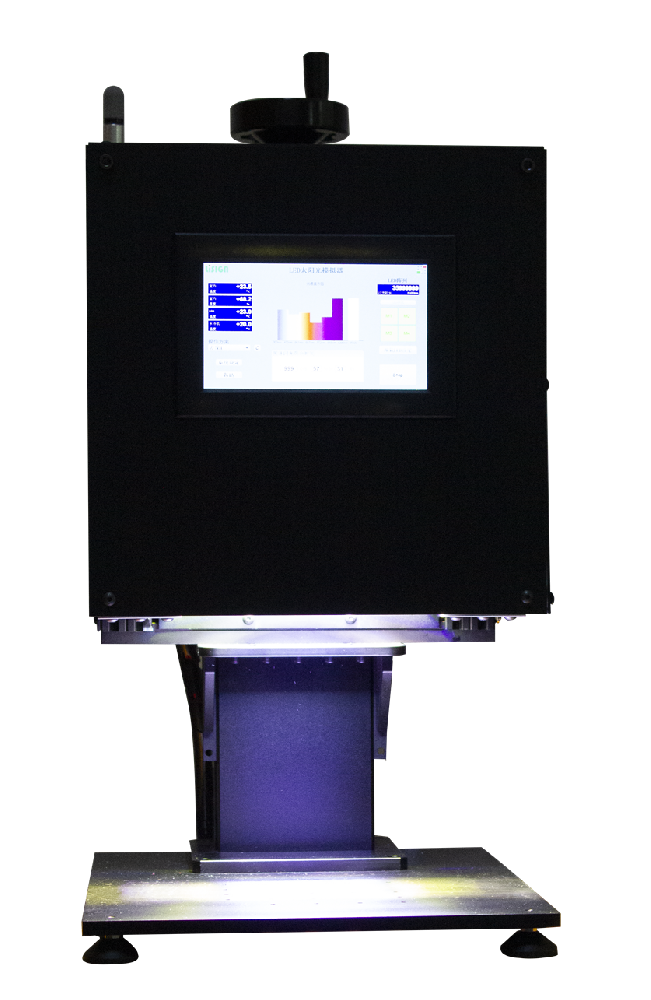

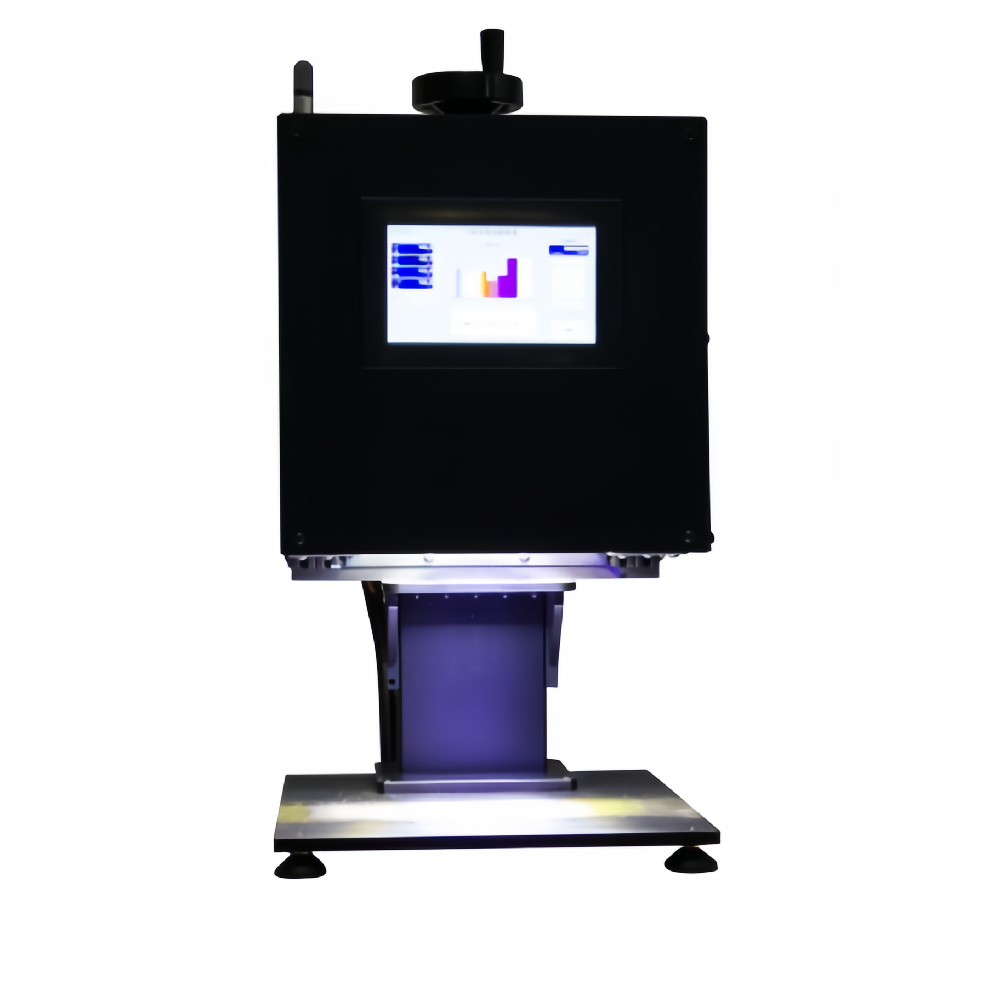

SLS-100S LED Solar Light Source Simulator

SLS-100S LED Solar Light Source Simulator

SLS-100S is an ideal solar light source simulator for scientific research, which uses LEDs covering wavelengths of 350nm~1100nm as the light source. After spectral fitting, mixing, and homogenization, it forms a solar simulator that meets 3A+requirements.

The full name of LED is light emitting diode, which is a semiconductor device that can emit light when current flows through it. Electrons in semiconductors recombine with electron holes to release energy in the form of photons.LED solar light source simulator has incomparable advantages in solar cell test, aging, photocatalysis, photohydrolysis, photoreaction, photoluminescence, biological cultivation, health illumination, medical treatment and other fields.

Advantages:

1.Long Service Life:Benefit from the inherent long lifespan of LEDs, coupled with good heat dissipation design and temperature control algorithms, the service life of LED light sources can reach 10000 hours;

2.A+ Spectrum:According to IEC60904-9-2020 standard, the spectral range of A+ is 0.875~1.125, and the actual measured data of LS-LED series products is 0.964~1.02, which is much higher than the A+ standard;

3.Stable spectrum:The LED output spectrum is not only related to the characteristics of the device itself, but also related to the operating current and temperature. In the design process from the LED chip package to the whole machine structure, how to achieve efficient heat dissipation is the primary consideration, and the excellent high-precision constant current source is adjusted to fundamentally ensure the stable work of the LED, making each segment of the LED output spectrum very stable;

4.Spectral adjustable:The IEC 60904-9 standard divides the solar spectrum into 6 spectral segments. According to the standard, the LS-LED series solar simulator can realize the independent control of 6 spectral segments, which can effectively play a role in the test of multi-segment solar cells such as perovskite laminated solar cells IV;

5.Built-in light intensity feedback system:Built-in light intensity feedback system, real-time monitoring of irradiation intensity, using software algorithms to dynamically adjust the irradiation intensity, long-term irradiation instability is less than 0.7%;

6.Continuous adjustment of light intensity:Each group of LED lamp beads adopts independent constant current source control, and the light intensity can be adjusted by adjusting the current intensity as a whole;Continuous power adjustment in the range of 100 to 1100 W/m2 at a minimum of 1%.

Technical Parameters:

Scenario application:

1. Solar cell IV test

● Meet the 3A level requirements for light sources in the standard testing procedures;

● Can provide an integrated solution for solar simulators, digital source meters, testing fixtures, standard solar cells, and testing software.

2. MPPT stability test for solar cells

● 3A level light source, with a spectral range of 350nm~1100nm, meets the stability testing requirements for perovskite and perovskite stacked solar cells;

● Can work continuously for 1000 hours;

● Integrated light intensity feedback system, with a long-term instability level of less than 1%, can better eliminate the influence of light sources on characterization;

● Can provide an integrated solution for solar simulators, multi-channel digital source meters, multi-channel nitrogen sealed temperature control fixtures, and testing software.
