LED Solar Simulator ACG-SLS-60A

LED Solar Simulator ACG-SLS-60A

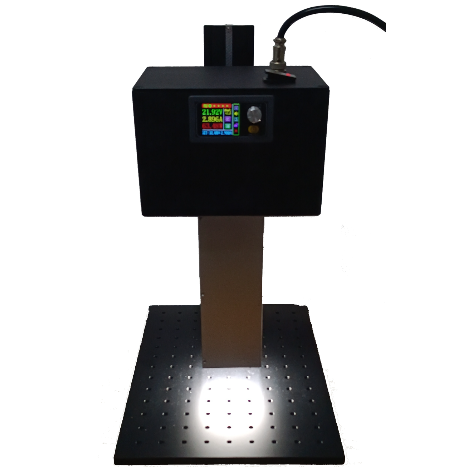

SLS-60A is a series of small steady-state LED solar simulation light source products with better spectral matching than xenon lamp light sources. It can be placed in a glove box and has passed the AM1.5 IEC 60904-9:2007/2020 Class AAA standard certification (China Institute of Metrology). Its lifespan is over 10000 hours (more than 10 xenon lamp lifespans, saving 10 times the cost and time).

Due to its advantages of long lifespan, it has great potential for applications in silicon solar cells, stacked cells, perovskite cells, organic cells, photocatalysis, photo hydrolysis, photo reactions, and other fields.

Advantages:

1. The lamp base integrates LED surface light source, optical system, heat dissipation system and power control system, which are flexibly installed;

2. Remote non-contact on/off and light intensity regulation are realized by the remote controller;

3. The service life of the light source exceeds 10,000 h, more than 10 times that of the xenon lamp;

4. It provides rotated lights from upper, lower, left and right directions;

5. With a small size, it can be placed inside the glove box, and the light intensity can be regulated outside.

Technical Parameters:
