AM100S Vibratory Ball Mill Series

Vibratory Ball Mill Series

Vibratory Ball Mill is developed specially for dry and wet grinding of small sample amounts. It’s laboratory "all-rounders” . It can be rapidly and efficiently grinded and homogeneous in a very short time and at frequencies up to 35HZ. Under certain grinding conditions, some samples can reach sub micron level.

It can grind for dry,wet and freeze. Moreover, it can pulverize two samples from 0.2 to 45ml at the same time. AM100S is also perfectly suitable for the disruption of biological cells as well as for DNA/RNA recovery. Various materials grinding jars are suitable for many fields. Agate and zirconia are the best choice for heavy metal.

Performance Advantage

1. Compact and light, and can be brought to the scene as portable equipment.

2. Dry,wet and low temperature in liquid nitrogen for grinding.

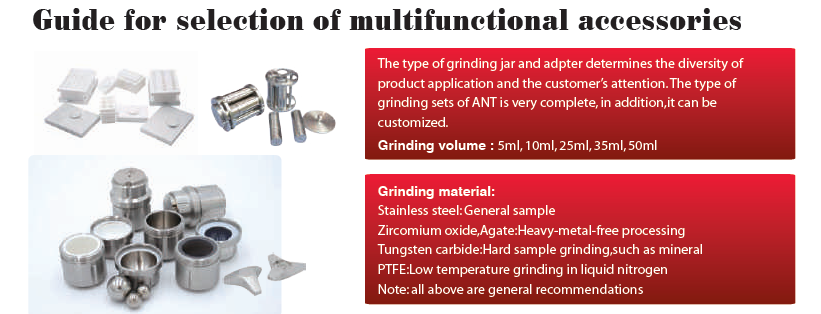

3. A variety of materials grinding jar and multi aperture adapters are optional.

4. Large range of grinding jars and maximum sample quantity 2 x45ml,multi aperture adapter sample quantiy 6×100ml.

5. High sample throughput due to short grinding times and two grinding stations, especially suitable for the disruption of biological cells as well as for DNA/RNA recovery.

6. Good sealing, eliminate cross contamination between samples.

7. Reproducible results by digital preselection of grinding time and vibrational frequency.

8. Memory keys for three parameter combinations, The grinding process is more standardized and efficient.

9. The automatic center location and safety locking device can ensure the quick location of the grinding kit, high efficiency and safety.

10. The instrument is equipped with an electromagnetic safety system to ensure the safety of the operator.

Technical Information
