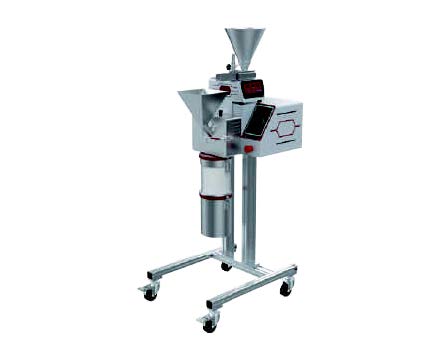

AM350 Beater Mill

AM350 Beater Mill

Rotor Beater Mill is mainly suitable for crushing dry, soft, brittle, and medium-hard samples. Because a motor with a wide range of torque changes is selected, it can be used in laboratory sample preparation, industrial batch or continuous processing. The feed size of AM350 can reach 25mm. With strong driving force and high speed of 10000rpm, the sample can be crushed directly to a fineness of about 100um. Different from other instruments for grinding hard samples, the percussion type grinding instrument can directly control the size of the material and improve the working efficiency. In addition,Rotor Beater Mill provides different Rotor and bottom sieve, which is convenient for customers to choose according to their needs and operating habits.

Performance Advantage

A.Suitable for continuous or batch processing of large numbers of samples.

B.Sample feed size up to 25mm.

C.Bottom sieve aperture size 0.12mm-10mm optional，Can control the final output particle size to 100um.

D.Speed 2000-10000rpm adjustable.

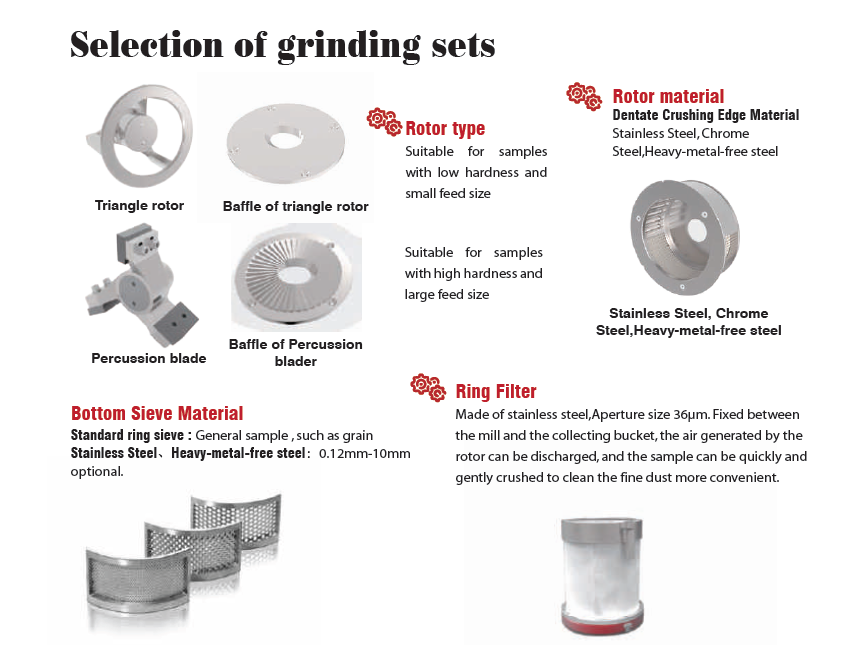

E.Various forms of rotor are available,adapt to different sample preparations.

F.Removable grinding sets, easy to clean.

G.Available with automatic feeder and screw feeder,high degree of automation.

H.Can be connected to the cyclone separator, Improve air flow, cooling samples and grinding tools,improve sample preparation

efficiency.

I.Collection device can be connected to a ring filter,more convenient to clean the dust.

J.Motor quick brake and safety lock device.

K.Host and stand can be separated for easy transportation.

L.Easy to move with casters.

Technical Information
