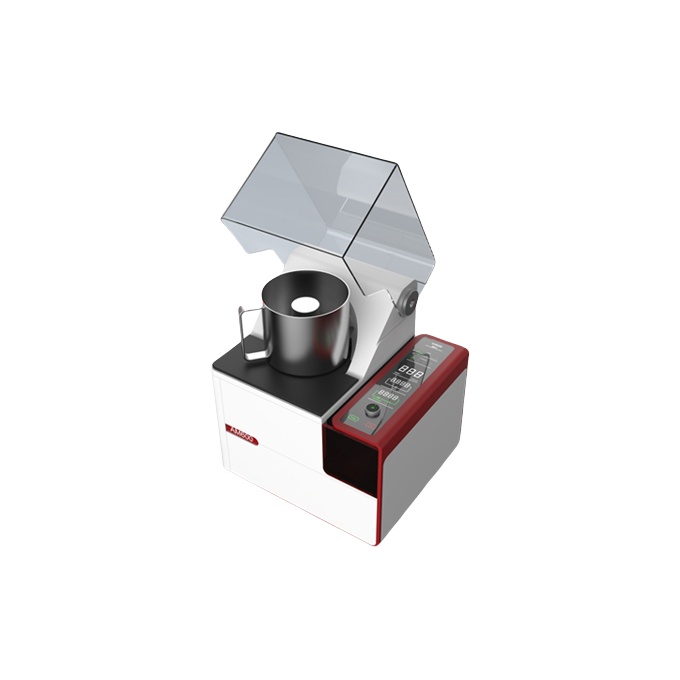

AM600 Knife Mill
AM600 knife mill is the most widely used in the food field. Not only dry, elastic, tough, brittle, fibrous, soft, and medium hard samples are effectively ground, but also the "three high" samples with high moisture, high oil and high fat content are quickly and effectively homogenized to meet customer needs.
Performance Advantages
A.High speed and more efficient grinding.

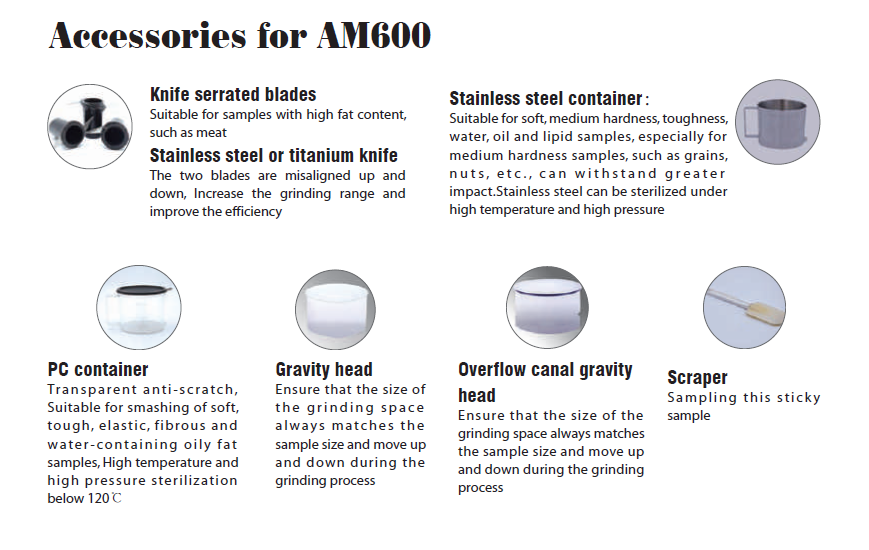

B.Vdue to wide range of accessories and wide range of applications.
C.Sample vessel easy to clean and exchange.
D.The plugged structure rotor and containers, all grinding sets can be sterilized at high temperature and high pressure.
E.One button operation, more easily.
F.Data digital display , memory 4 groups.
G.Run mode , interval、forward、backward, quick.
H.The instrument is equipped with safety lock device, the machine cover can not be opened during grinding, and the instrument can not start when the machine cover is opened. Ensure the safety of operators and meet CE certification.
I.Knife serrated blades make hard samples, fat samples better homogenized.
J.The cover can be automatically switched.
Technical Information
Technical parameter | AM600 Knife Mill |
Sample type | dry, elastic, hard, brittle, fibrous, soft, medium-hard, moisture, oil, fat |
Feed size | ≤10-50mm |
Final fineness | Approx. 300μm |
Feeding quantity | Max. 700ml |
Setting Speed | 1000-12000rpm |
Knife diameter and line speed | 118mm/about 12.4-62m/s |
Grinding environment range | Dry, Wet, Low temperature grinding |
Grinding containers and material | 1L,stainless, PC |
Setting time | 1s-5min, digital display |
Run mode | Interval,forward,backward,quick |
Knife material | Stainless steel,titanium |
Parameter storage | 4 groups |
WxHxD | 300mmx370mm×260mm |
Net Weight | Approx. 19kg |
Electrical parameters | 220v/1100w |
