AM200S Mortar Grinder

AM200S mortar grinder is a classic mill. It roots in traditionalmanual grinding . Simple and convenient operation. Soft, hard, brittleand pasty samples can be ground. The digital display speed can makethe grinding result repeatable. Samples that are difficult to grind byheating, freezing or adding grinding aids.
Products Inquiry

Product Details

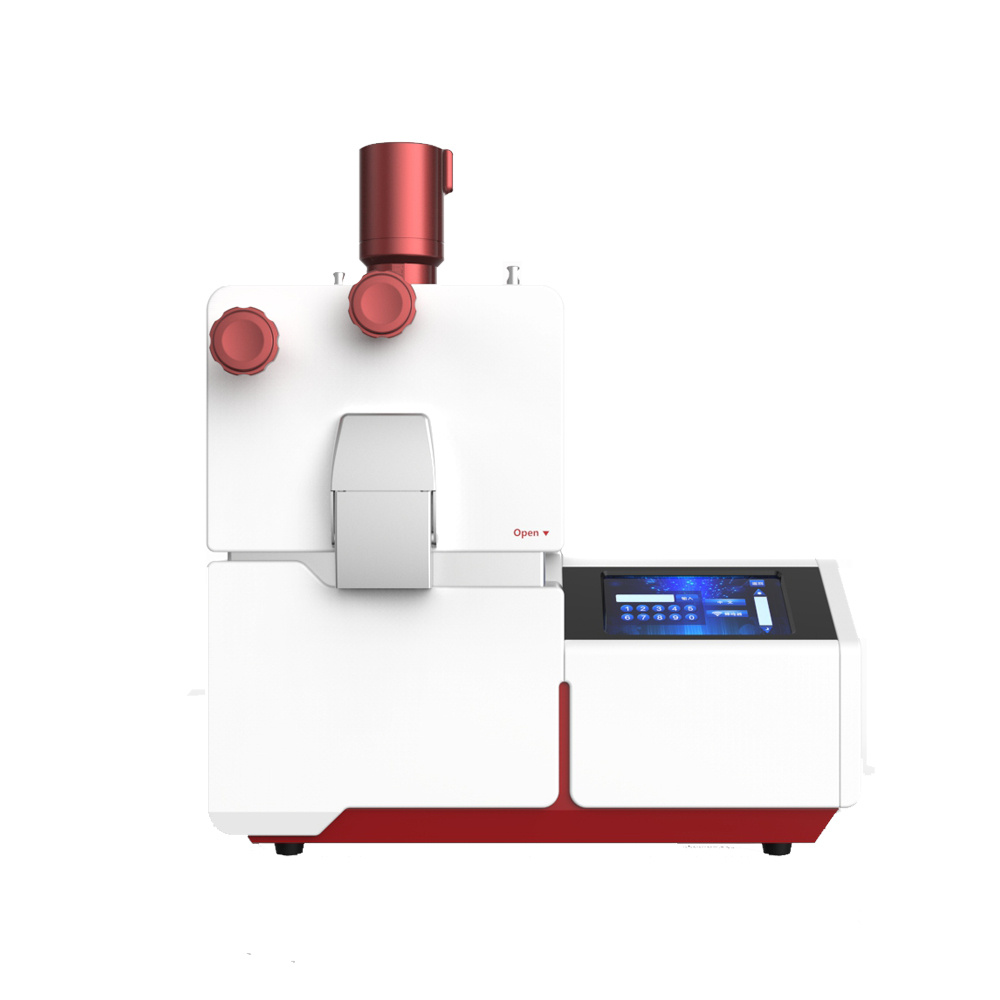

AM200S Mortar Grinder

AM200S mortar grinder is a classic mill. It roots in traditional manual grinding . Simple and convenient operation. Soft, hard, brittle and pasty samples can be ground. The digital display speed can make the grinding result repeatable. Samples that are difficult to grind by heating, freezing or adding grinding aids.


Performance  Advantages

A.Dry, wet, freezing.

B.The samples were homogenized by the classic mild grinding method.

C.Digital time display ensures repeatability of results.

D.The adjustment of the pressure and position of the pestle and the adjustment of the scraper board ensure the optimal grinding state.

E.Mortar and pestle are plugged structure, no tools, easy to disassemble and easy to clean.

F.The instrument has an observation window, and the LED lamp in the grinding chamber can clearly understand the grinding state at any time.

G.The control panel has a load display function.

H.7different grinding set materials.

I.Closed, dust-tight grinding chamber.

J.The instrument has a sensing device , operation safety.


Technical Information

Technical parameterAM200S Mortar Grinder
Sample typeSoft,Hard,Brittle and Pasty
Feed size≤15mm
Finalfineness<0.2-5μm(Depending on the nature of the sample and the grinding environment)
Feeding quantity10-200ml
Setting grinding time1s-99h59min59s continuous
Intermittent time1s-99h59min59s continuous
Stop time1s-99h59min59s continuous
Setting speed50rpm-150rpm,Section speed can be set
Cycles1-20 times
Parameter storage10 groups
Load displayYes, Displayed on the LCD
Sample temperature displayYes, Displayed on the LCD
Grinding environment rangeDry,Wet,Low temperature grinding in liquid nitrogen
Mortar and pestle material

Chrome steel,Stainless steel,Tungsten carbide, Agate,

Sintered aluminum oxide,Zirconia,Hard porcelain

Setting pestle pressurePass the scale and display the pressure in the display
Setting scraper peerssureVia knob
W×H×D390mm×455mm×285mm
Net weight40Kg
Electrical parameters220V/250W
