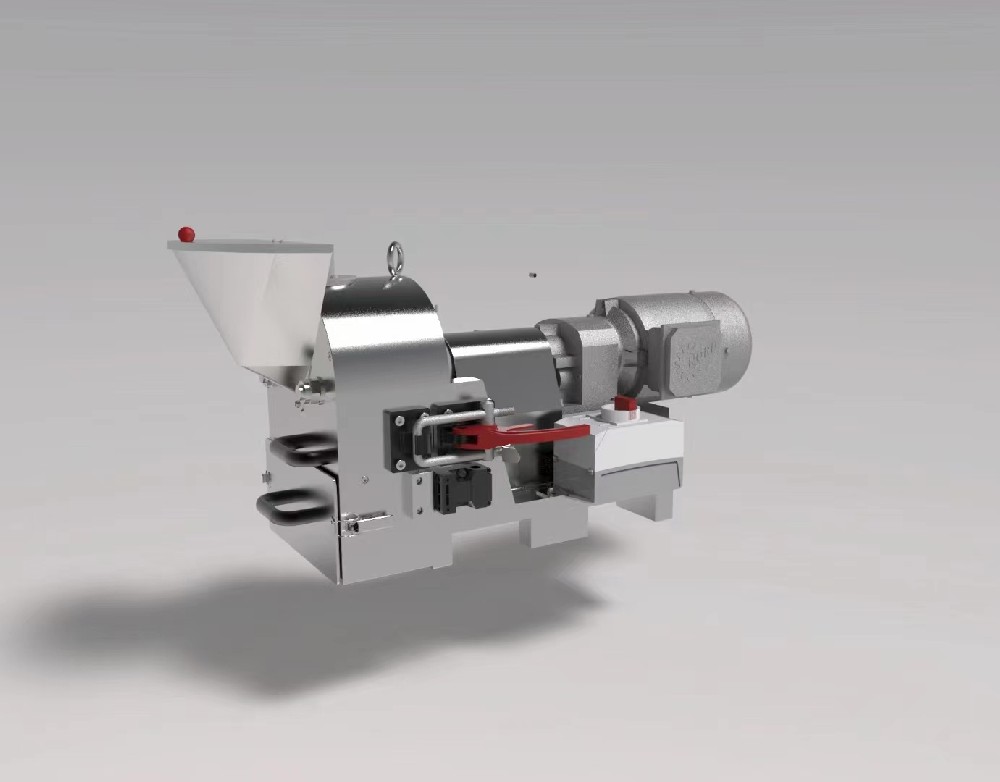

AM800 Disc Mill
AM800 Disc mill is used for batchwise or continuous preliminary and fine size reduction of mediumhard to hard-brittle solids. The disc mill can grind such sample materials to an average final fineness of approx. 100μm in one go.
Performance Advantages
A.Accurate gap setting for reproducible grinding results.
B.Short grinding times , final fineness up to D90 < 100μm.
C.Grinding for hard sample , maximum feed size up to 20mm
D.Contamination-free grinding with grinding discs made from 4 different materials.
E.Grinding chamber can open , easy cleaning.
F.Dust-free grinding thanks to connector for dust extraction.
G.Safety lock device , Experimentalize safety.
Technical Information
| Technical parameter | AM800 Disc Mill |
| Sample type | Hard,Medium-hard,Brittle |
| Feed size | ≤20mm |
| Final fineness | ＜100μm（Depending on the nature of the sample） |
| Collector capacity/Through put | 3L/150Kg/h |
| Gap with setting | 0.1-12mm, continuous, Precision of digital display 0.01mm |
| Speed | 440rpm |
| W×H×D | Approx. 410mm×480mm×890mm |
| Net weight | Approx. 140Kg |
| Electrical parameters | 3~380V/1500W |
