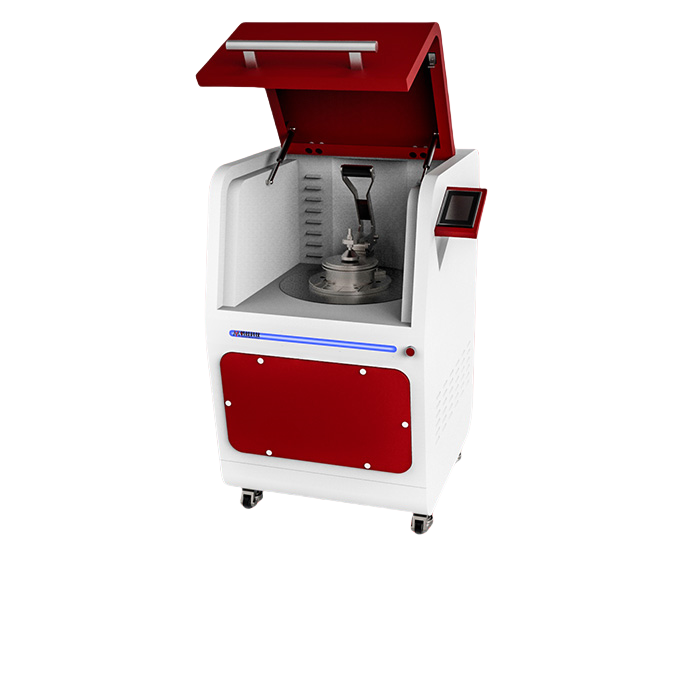

AM900 Vibratory Disc Mill
AM900 Vibratory Disc Mill is particularly suitable for rapid, loss-free grinding of hard, brittle and fibrous materials to analytical fineness. The AM900 is primarily used for sample preparation for spectral analysis. AM900 Even in large volume grinding jars and high speed, it can maintain a smooth and low tempered run. It can achieve 20-100 micron grinding fineness within a few seconds and has good reproducibility.
Performance Advantages
A.Extremely short grinding time,XRF or other spectral analysis of fineness requirements.(about 100μm).
B.Reproducible results.
C.Handle ergonomics design, grinding sets is easy to install.
D.Quick-action grinding set clamping device, stable planar drive.
E.Setting speed range 700-1500rpm.

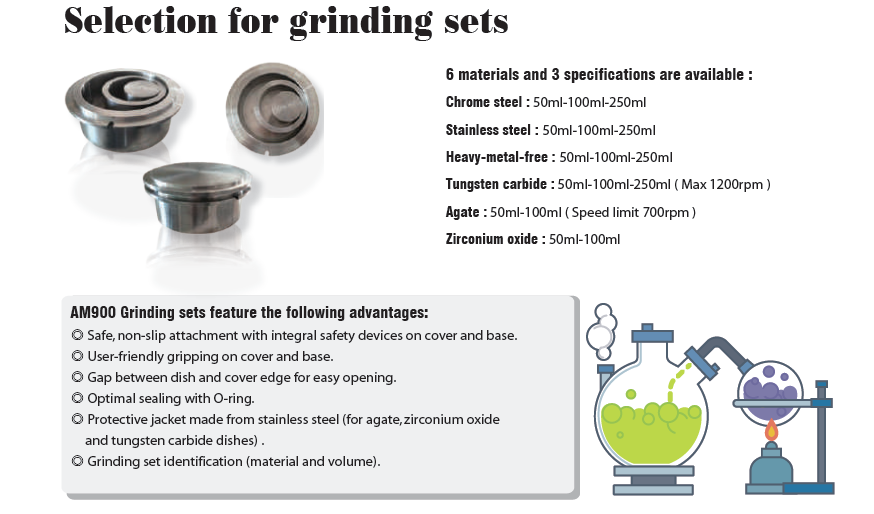

F.Grinding sets in different sizes and materials.
G.Agate and tungsten carbide recognition for automatic speed reduction ( Speed Iimit 1200rpm and 700rpm ) .
H.The grinding jars can be slid from the track to the exact position.
I.LCD touch screen display.
J.10 parameter combinations can be stored.
K.Sealed, noise-insulated grinding chamber.
L.Maintenance-free.
Technical Information
| Technical parameter | AM900 Vibratory Disc Mill |
| Sample type | Medium-hard、 hard、 brittle、fibrous |
| Feed Size | ≤15mm |
| Final fineness | D90≤20um (Depending on the nature of the sample and the grinding environment) |
| Feeding quantity Batch | 15-250ml |
| Grinding volume | 50ml/100ml/250ml |
| Setting speed | 700-1500rpm, continuous |
| Setting grinding time | 1s-99h59min59s |
| Grinding sets material | Chrome steel，Stainless steel，tungsten carbide、agate、Zirconium oxide、Anti-heavy metal steel |
| Program storage | 10 groups |
| Grinding environment range | Dry and wet |
| WxHxD | 810mm><1220mmx815mm |
| Weight net | Approx.300kg |
| Electrical parameters | 220V/50HZ/1500W |
