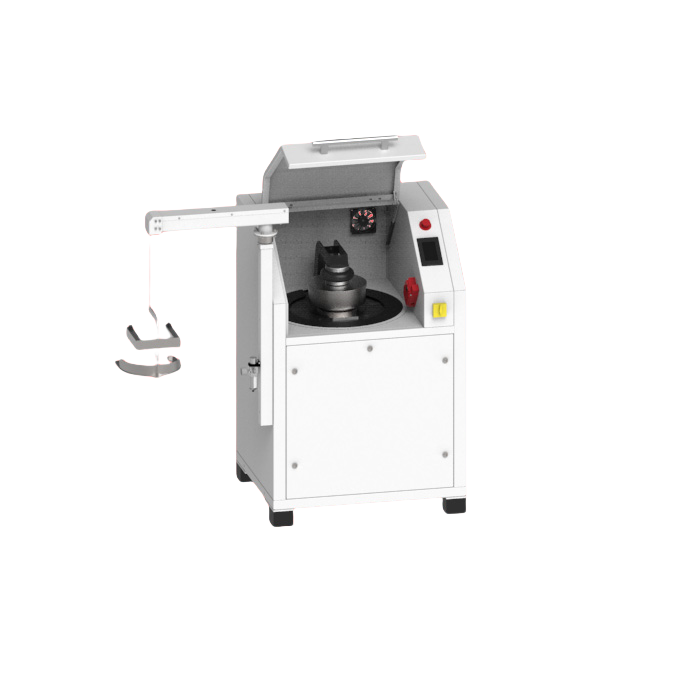

AM950 Vibratory Disc Mill

AM950 Vibratory Disc Mill

The Vibratory Disc Mill AM950 is suitable for the extremely qui ck, loss-free grinding of hard, medium-hard, brittle and fibrous materials to analytical fineness. The largest grinding sets can be 200ML. according to the size of grinding sets, can prepare 1-4 samples at the same time. The mill has proven to be ideal for use in geology, metallurgy and building materials sector and is the perfect mill when it comes to preparing samples for spectral analysis.

The grinding set is firmly attached to the vibration plate with a quick-action lever. The plate with the grinding set is subjected to circular horizontal vibrations.

The centrifugal force acting on the grinding rings in the dish results in extreme pressure, impact and frictional forces acting on the sample, producing analytical fineness in very short time.

Performance Advantages

A.The motor is connected by shaft, which provides power for the grinding plate, improves the reliability of the mechanism and increases the service life of the motor.

B.To analytical fineness of XRF and spectral analysis with extremely short grinding time

C.Good reproducible results

D.There is location orientation on grinding sets ,which can directly slide into the grinding plate along the track

E.New ergonomic design,Easy to install of grinding set

F.The motor is connected by shaft, which provides power for the grinding plate, improves the reliability of the mechanism and increases the service life of the motor.

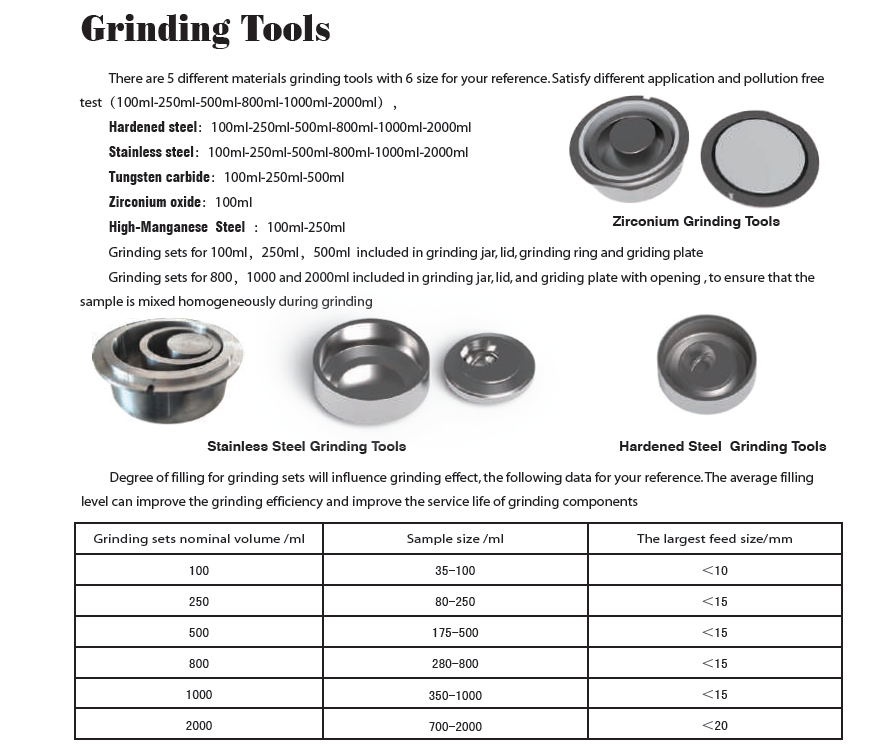

G.There are difference kinds of size and material for grinding sets

H.LCD display, easy to operate, can be set with positive and negative, intermittent functions. 10 SOPs can be stored

I.Largest grinding chamber is 2000ml, with large sample preparation

J.Can prepare 4×250ml samples at the same time

K.Quick-action grinding set clamping device for convenient and safe tightening

L.Pneumatic lifting device drives by cylinder for safety and long service time

M.Pressure inspection device, the mill can not start without enough pressure; safety interlock

N.No special maintenance is required for the equipment

O.Can prepare 4×250ml samples at the same time

Technical Information
