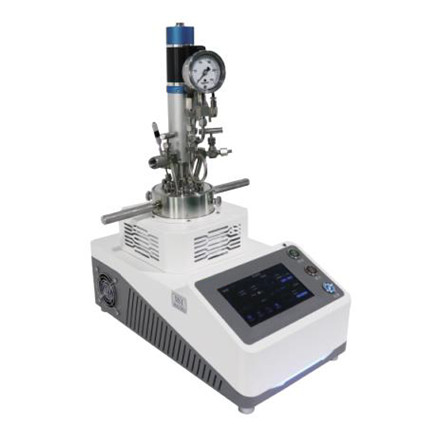

MSI Intelligent Quick-Opening Mechanical Stirring Reactor
Product features
Safety
⚫ Adopt integrated machine shaping structure
⚫ Tenon-groove type main sealing structure
⚫ Over-temperature automatic power-off
⚫ Over-pressure buzzer alarm
⚫ American Swagelok needle valve for air inlet and outlet control
⚫ Fitok import relief valve and customized rupture valve, providing double protection
Portable
⚫ Integrated design
⚫ V-stem portable needle valve with customized coating
⚫ Minimize the weight of the reactor on the premise of ensuring safety
Efficiency
⚫ Quick-opening structure
⚫ Power-assisted disassembly tools
⚫ 7-inch sensitive touch screen
⚫ Concise and intuitive UI man-machine interface
⚫ USB interface for data download
Accurate
⚫ Intelligent PID temperature control mode
⚫ Digital display stepless speed regulation
⚫ Embedded heating module with faster heat transfer
Technical parameters
| Design volume | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
| Maximum operating temperature | Standard 300 ℃ |
| Heating mode | Embedded stainless steel heating module |
| Heating power | 1 kW |
| Stirring speed | 400-1400 rpm (stepless speed regulation) |
| Stirring method | High-torque magnetic coupling stirring |
| Design pressure | Standard 207 bar |
| Material of reactor | 316 L stainless steel, Hastelloy C-276, etc.(optional) |
| Intelligent Micro Reactor Controller | Over-temperature automatic power-off, over-pressure buzzer alarm 7-inch touch screen, displaying the temperature, rotation speed, pressure and operating time USB interface, supporting data export Power supply configuration: 200 - 240 V/AC, 50 - 60 Hz Outline dimension: about 250*460*410 mm |
| Personalized options | Various alloy materials, stirring forms, sampling and cooling, etc. optional configurations |
| Outline dimension | MSI25/50/100 mL: 372*400*600 mm |
