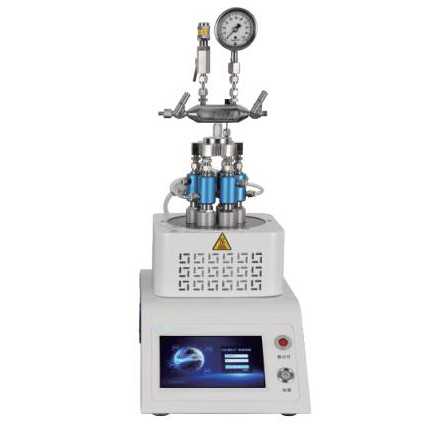

Six-Station Multi-Trap Reactor

The six-station multi-trap reactor integrates the stirring device, heating furnace and intelligent temperature controller. A 7-inch HD touch screen is provided to control the temperature and rotation speed. Equipped with a USB interface, the parameters such as temperature and rotation speed in the reaction recorded in real-time can be downloaded with the USB flash disk. This product is mainly used in the research of heterogeneous catalytic hydrogenation, debenzylation and pyridine ring hydrogenation.

Products Inquiry

Name * :

Tel * :

Email :

Equipment Name :

Your Company Name and Requirements :

Product Details

Six-Station Multi-Trap Reactor

Product features

Safety

⚫ Adopt integrated machine shaping structure

⚫ Six independent reactor vessels, bearing the pressure up to 103 bar

Efficiency

⚫ Looper quick-opening structure, easy to disassemble

⚫ 7-inch HD sensitive touch screen

⚫ Concise and intuitive UI man-machine interface

Portable

⚫ Integrated design

⚫ Minimize the weight of the reactor on the premise of ensuring safety

Accurate

⚫ Intelligent PID temperature control mode

⚫ Digital display stepless speed regulation

Technical parameters

Design volume	10 mL, 20 mL
Design pressure	103 bar
Design temperature	200 ℃
Operating temperature	180 ℃
Material of reactor head	316 L stainless steel , Hastelloy C-276
Intake and exhaust valve	American Swagelok needle valve for air inlet and outlet control
Relief valve	Fitok import relief valve (optional)
Explosion-proof valve	Fitok customized rupture valve
Station	6
Load cell	Ashcroft pressure gauge (pressure transmitter is optional)
Heating mode	Embedded heating module with aluminum sheath
Stirring method	Magnetic stirring
Stirring speed	400-1400 r/min (stepless speed regulation)
Control mode	7-inch touch screen, displaying the temperature, rotation speed and operating time
Adaptive power supply	200 - 240 V/AC 50 - 60 Hz
Outline dimension	405255620 mm
