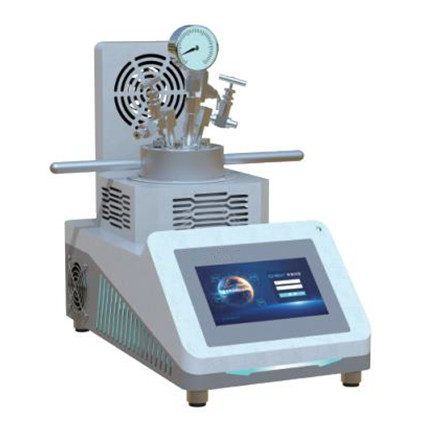

NSP Remote Intelligent Micro Magnetic Stirring Reactor
Product features
⚫ Reactor design
The quick-opening magnetic stirring reactor adopts dual calipers, a tenon-groove sealing structure, and an enhanced PTFE sealing gasket below 300 ℃. An integrated main structure with non-welding structure is used, which is safe and reliable. All the core accessories are imported products of well-known brands. The brushless DC motor and high magnetic magnet are used, offering a high stirring torque. The full static sealing structure is adopted, free from leakage caused by the kinematical sealing. The operating pressure of the reactor can be designed as required by the customers, supporting long-term operation under the pressure of up to 345 bar (5,000 psi)
⚫ All-round safety protection
Functions of over-temperature and over-pressure alarm prompt and power-off protection are provided during the reaction
⚫ Portable · One-button start of the system: input the target temperature, heat preservation time, and motor rotation speed to start the system and quickly heat up by pressing the button · Manual multi-stage temperature rise: based on the traditional multi-stage temperature control procedure, it meets the customers' multi-stage temperature control requirements · Other key functions: the temperature and pressure historical data and curve can be viewed in real-time; the historical data can be recorded entirely and exported through the USB interface with a USB flash disk
⚫ Accurate The self-developed temperature control strategy with high-temperature control accuracy and faster heating rate is used
⚫ Stability and reliability design The overall control system uses hardware of internationally well-known brands, such as Siemens PLC and Schneider relay
⚫ Remote control of the IoT (optional) · Remote operation through mobile phone APP or remote computer · Convenient data display and analysis window, realizing real-time data and curve viewing, historical data and curve querying · Remote equipment settings and one-button start-stop control are allowed. Input the target temperature, heating rate, heat preservation time and motor rotation speed remotely, you can start or stop the system by pressing the button. Besides, the remote power-off function is offered to protect the equipment remotely
Technical parameters
| Adaptive volume of the high-pressure reactor | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
| Adaptive power supply | 200 V~240 V/AC, 50~60 Hz |
| Maximum design temperature | 300 ℃ |
| Heating mode | Embedded stainless steel rapid heating module |
| Heating power | 1 kW |
| Stirring method | Magnetic stirring |
| Stirring speed | 400~1400 rpm |
| Design pressure | Standard 207 bar (optional) |
| Material of reactor | 316 L stainless steel , Hastelloy C276, etc.(optional) |
| Outline dimension | 240*270*450 mm |
Intelligent control system | The three-in-one operating system of mobile phone APP + remote computer + local touch screen Quick parameter setting and one-button start Free switch of manual input of multi-stage temperatures and one-button start Data viewing and curve displaying Historical data record and export in sheet |
| Personalized options | Various alloy materials, stirring forms, sampling and cooling, etc. optional configurations |
