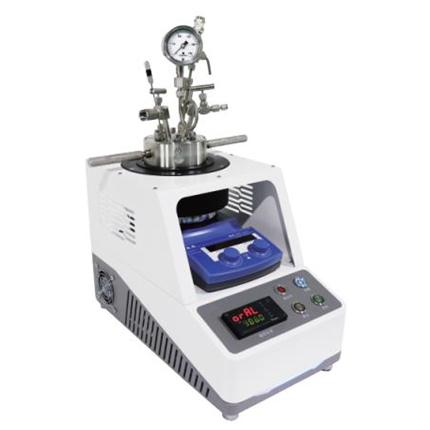

NSC Classic Quick-Opening Magnetic Stirring Reactor
Product features
⚫ Safety: It adopts integrated machine shaping structure; tenon-groove type main sealing structure, American Swagelok needle valve for air inlet and outlet control, Swagelok fittings, tubes and PTFE tapes, supports the over-temperature automatic power-off, and provides double protection through imported Fitok import relief valve and customized rupture valve
⚫ Portable: V-stem portable needle valve with customized coating; Minimize the weight of the reactor on the premise of ensuring safety
⚫ Efficiency: Quick-opening structure; Power-assisted disassembly tools
⚫ Accurate: Intelligent PID temperature control mode; Digital display stepless speed regulation; Embedded heating module with faster heat transfer
Technical parameters
| Design volume | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
| Maximum operating temperature | 300 ℃ |
| Heating mode | Embedded stainless steel heating module |
| Heating power | 1 kW |
| Stirring speed | 0-1400 rpm (stepless speed regulation) |
| Stirring method | Built-in magneton stirring |
| Design pressure | Standard 207 bar (optional) |
| Material of reactor | 316 L stainless steel, Hastelloy C-276, etc.(optional) |
| Personalized options | Various alloy materials, stirring forms, sampling and cooling, etc. Optional configurations |
| Outline dimension | 372*250*300 mm |
