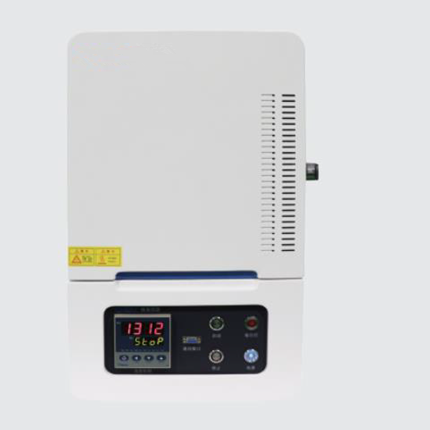

1400 ℃ Series Box Furnace (8 L)
The desktop box furnace is integrated with intelligent temperature control system.
The 1500 grade U-shaped silicon carbide rod heating elements are distributed at the left and right to provide higher heating rate and uniform temperature. The digital display instrument that is integrated with the body can reduce manual operation errors and provide a high temperature control precision.
Technical parameters
| Item Model | BFC-1400-8L |
| Maximum temperature | 1400 ℃ (short-term) |
| Rated temperature | 1350 ℃ |
| Chamber size | 180*250*180 mm (volume: 8 L) |
| Recommended heating rate | 10 ℃/min (≦1,400 ℃) |
| Control system | Fuzzy PID control and self-tuning regulation Intelligent control through 30 programmable segments Supporting alarm for over-temperature and for open circuit of thermocouple |
| Rated power | 5.2 kW |
| Adaptive power | AC220 V 50/60 HZ |
| Outline dimension | 590*580*780 mm |
| Weight | 80 kg |
