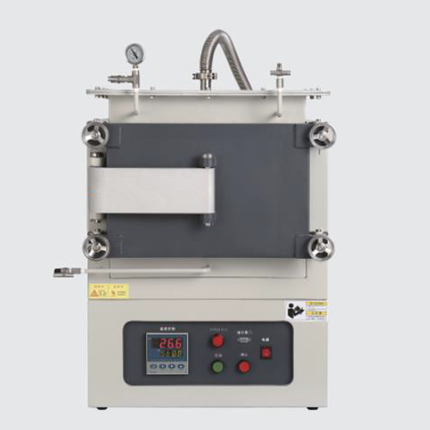

1200 ℃ Series Vacuum Atmosphere Box Furnace (7.2 L)
The desktop box furnace is integrated with intelligent temperature control system. Adopting three-side heating design, the heating elements are distributed at the left, right and top to provide higher heating rate and uniform temperature. Digital display instrument with a higher temperature control precision is adopted to reduce manual operation errors and improve working efficiency. Besides, the equipment is also provided with emergency stop button and over-temperature alarm function to improve the safety of the equipment. The heating chamber can be used for material calcination in vacuum or atmosphere.
Technical parameters
| Item Model | BFV-1200-7.2L |
| Maximum temperature | 1200 ℃ (short-term) |
| Rated temperature | 1150 ℃ |
| Chamber size | 200*300*120 mm (volume 7.2 L) |
| Recommended heating rate | 20 ℃/min |
| Control system | Fuzzy PID control and self-tuning regulation Intelligent control through 30 programmable segments Supporting alarm for over-temperature and for open circuit of thermocouple |
| Rated power | 2.5 kW |
| Adaptive power | AC220 V 50/60 HZ |
| Outline dimension | 450*500*610 mm |
| Weight | 80 kg |
| Limiting vacuum degree | Under 1,000 Pa |
