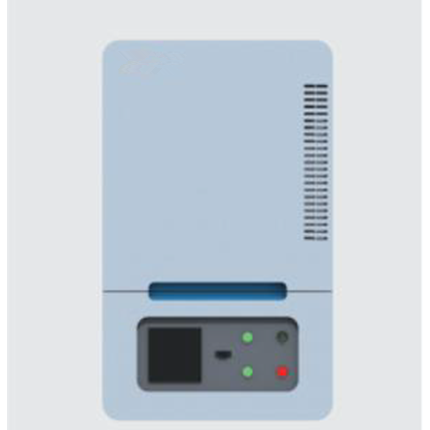

Mini Constant Temperature Box Furnace
The mini constant temperature box furnace is integrated with intelligent temperature control system. Adopting three-side heating design, the heating elements are distributed at the left, right and top to provide higher heating rate and uniform temperature. Digital display instrument with a higher temperature control precision is adopted to reduce manual operation errors and improve working efficiency. Besides, the equipment is also provided with emergency stop button and over-temperature alarm function to improve the safety of the equipment.
Product features
1. Small volume, low energy consumption, easy handling
2. Supporting alarm for over-temperature and for open circuit of thermocouple
Technical parameters
| Item Model | BFC-1200-1L |
| Maximum temperature | 1200 ℃ (short-term) |
| Rated temperature | 1000 ℃ |
| Recommended heating rate | 10 ℃/min |
| Temperature control precision | ±1 ℃ |
| Thermocouple | K-type |
| Chamber size | 100*100*100 mm (1) |
| Heating surface | Left, right and top |
| Heating element | Beijing SHOUGANG HRE |
| Rated power | 1 kW |
| Adaptive power | AC220 V 50/60 HZ |
| Outline dimension | 290*270*450 mm |
| Weight | 14 kg |
