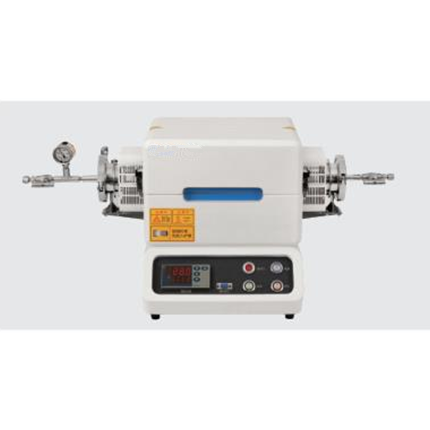

TFH Horizontal Tube Furnace/Micro Power-Assisted Tube Furnace
TFH-1200-30-I-220 micro power-assisted tube furnace is integrated with intelligent temperature control system. The furnace incorporates 30 heating and cooling curve settings, providing a temperature control precision of ±1 ℃. The chamber is made of alumina polycrystalline fiber with good heat insulation effect. The double-layer shell design combines with the air cooling system to provide a surface temperature lower than 60 ℃, allowing the operation of the furnace under multiple atmospheres. The furnace is widely applied to various scientific research and production fields such as atmosphere sintering, reduction and vacuum annealing.
Product features
Characterized by quick warming-up, low surface temperature and energy saving, etc.
Supporting over-temperature protection and power failure protection
Technical parameters
| Model | TFH-1200-30-I-220 |
| Maximum temperature | 1200 ℃ (short-term) |
| Rated temperature | 1100 ℃ |
| Heating rate | M10 ℃/min |
| Temperature control precision | ±1 ℃ |
| Size of fabricated furnace tube | φ30*500 mm (maximum: φ50 mm) |
| Size of furnace chamber | φ80*220 mm |
| Heating zone length | 220 mm |
| Constant temperature zone length | 60-80 mm |
| Heating element | Beijing SHOUGANG HRE |
| Rated power | 1.5 kW |
| Adaptive power | AC220 V50/60 HZ |
| Outline dimension | 340*320*380 mm |
| Weight | 16 kg |
