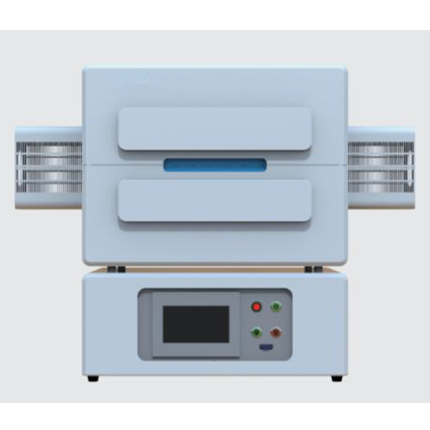

1500 ℃ Open-Type Single-Zone Tube Furnace
Structure introduction
1500 ℃ open type single-zone tube furnace adopts silicon carbide rod as heating element, providing a rated temperature of 1,400 ℃ and a maximum temperature of 1,500 ℃. With Yudian AI-3756P touch screen type temperature controller and S-type thermocouple, temperature control through 30 programmable segments with a temperature control precision of ±1 ℃ is realized. With a set of 316 L stainless steel open-quick flanges that adopt double-ring sealing technology, the equipment can be applied to various experiment environments such as sintering and substrate coating in vacuum or atmosphere. The built-in double-layer air cooling structure provides a surface temperature ≤60 ℃. Both ends of the flanges are supported to lighten the load of the furnace tube, thereby guaranteeing the service life of the furnace tube.
Technical parameters
| Item/Model | TFH-1500-50-I-390 |
| Maximum temperature | 1500 ℃ (short-term) |
| Rated temperature | 1400 ℃ |
| Size of corundum furnace tube | φ50/φ60*1,000 mm (customizable) |
| Heating zone length | 390 mm |
| Recommended heating rate | 10 ℃/min (≤1,400 ℃) |
| Control system | Fuzzy PID control and self-tuning regulation. Intelligent control through 30 programmable segments. Supporting alarm for over-temperature and for open circuit of thermocouple. |
| Heating element | 1500 grade silicon carbide rod |
| Rated power | 6 kW |
| Adaptive power | AC220 V50/60 HZ |
| Outline dimension | 670*580*750 mm |
| Weight | 75 kg |
