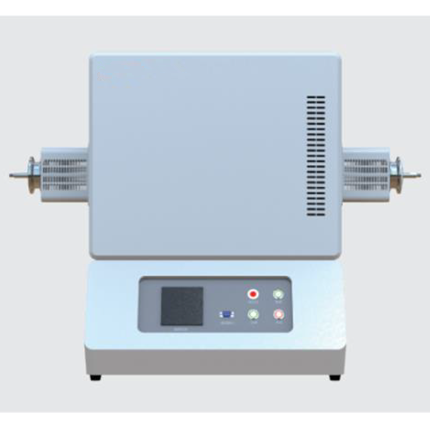

1500 ℃ Single-Zone Tube Furnace
Product introduction
1500 Single temperature zone tube furnace using silicon carbon rod as heating element, rated temperature 1500℃, the highest temperature up to 1450℃. Using Yu electronic temperature meter and S-type thermocouple, programmable 30 segment program temperature control, temperature control accuracy of ±1℃. The equipment includes a set of 316L stainless steel quick-opening flange and double-ring sealing technology, which can be used in CVD experiment, phosphor preparation, material sintering under vacuum or atmosphere, substrate coating and other experimental environments.
Technical parameters
| Item /Model | TFH-1500-50-I-260 |
| Maximum temperature | 1450 ℃ (short-term) |
| Rated temperature | 1400 ℃ |
| Recommended heating rate | ≤10 ℃/min |
| Control precision | ±1 ℃ |
| Size of furnace tube | φ30/50/60*1,000 mm |
| Size of furnace chamber | 260*130*190 mm |
| Heating zone length | 260 mm |
| Constant temperature zone length | 100 mm |
| Heating element | High-quality domestic silicon carbide rod |
| Rated power | 6 kW |
| Outline dimension | 510*560*640 mm |
| Weight | 60 kg |
