Induction Heating System

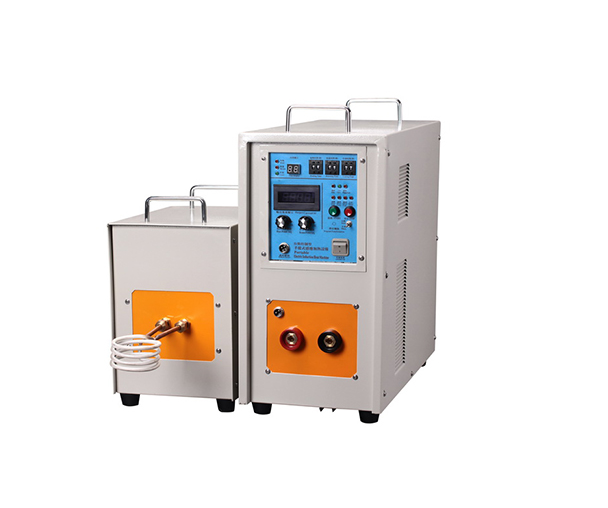

ACG-IHE-6KW Induction Heating System

Induction heaters mainly consist of inverters, resonant units, transformers, and inductors. The inverter is an AC-DC-AC converter that converts power frequency AC energy into high-frequency, ultra high frequency electrical energy ranging from thousands to hundreds of KHz. One end of the resonant unit and transformer is connected to an inverter, and the other end is connected to an inductor to convert the high voltage into an isolated low voltage and perform impedance matching. When heating, a strong high-frequency and ultrasonic current flows through the sensor, generating induced current inside the conductor, which quickly heats the conductor. The resonant frequency of the Ancourage induction heater varies depending on the heated object and process, generally ranging from 1000 to tens of KHz, which is most commonly used.

Performance Advantages

A.Efficient heating: Induction heaters use the principle of electromagnetic induction for heating. As eddy currents are mainly concentrated near the surface of the conductor, they can achieve fast and uniform heating effects. Compared to traditional heating methods, induction heaters can save energy and improve production efficiency.

B.Accurate control: Induction heaters can control the heating power by adjusting the frequency and amplitude of high-frequency current, thereby achieving precise control of the heating process. This makes the induction heater suitable for various processes that require high temperature control.

C.High safety: The induction heater does not directly contact the heating medium, reducing the safety risks caused by the operator's contact with high-temperature objects. At the same time, the induction heater quickly cools down after power is stopped, reducing the probability of accidents.

D.Non polluting: Induction heaters do not require fuel and do not produce harmful substances such as exhaust gas, wastewater, and waste residue, making them environmentally friendly.

Technical Information
